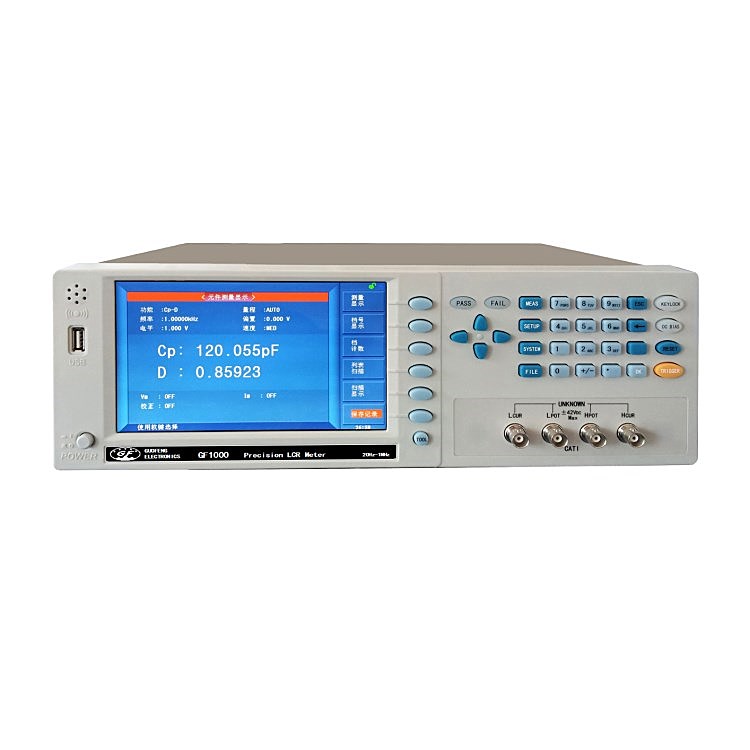

This meter is a multifunctional LCR precision digital bridge for inspection of all kinds of electronic components.Using 7 inches LCD TFT display. It is a high-speed, broadband, 6 bit test resolution of the impedance measuring instrument, 20Hz-1MHz multi frequency points and 0.01% accuracy can meet the requirements of various occasions component parameters detection. Is a high cost of quality testing equipment.
Performance characteristics
■ 32 bit core processor
■ 7inch color TFT display
■ 20 Hz－1MHz test frequency
■ 0.05% basic measurement accuracy
■ The frequency response curve analysis
■ At most four parameters at the same time test
■ ALC function
■ 30Ω, 100Ω,50Ω,10/CC,four different signal source output impedance
■ Comparative analysis function
■ 10 point list scanning function
■ Can save the file to the instrument or U disk
■ -5V~+5V internal DC bias voltage
■ The software version of the instrument can be upgraded
and updated by U disk.
■ U disk copy screen, real-time data storage, which can
support the FAT16 format, FAT32 file system
■ RS232C, USB HOST, USB DEVICE, HANDLER, headset
interface, foot switch;
|
Test frequency
|
GF1000：20 Hz－1MHz，
Minimum 0.0001Hz step
|
|
parameter
|
| Z|, |Y|, C, L, X, B, R, G, D, Q, θ ,DCR
|
|
Basic accuracy
|
0.05%
|
|
equivalent circuit
|
Series & parallel
|
|
Mathematics function
|
Absolute deviation, Percentage deviation
|
|
Range
|
Auto, Hold, Manual selection
|
|
Trigger mode
|
INT, MAN, EXT, BUS
|
|
Speed（≥1kHz）
|
FAST: 200 times/second,
MED: 12 times/second,
SLOW: 3 times/second
|
|
Average
|
1—255
|
|
Delay Time
|
0—60s
|
|
Calibration
|
open / short / load
|
|
Test terminal
|
Five terminal
|
|
List scan
|
10 point list scanning function
|
|
Display mode
|
Direct，Δ，Δ%，V/I
|
|
Monitor
|
800 x 480 RGB, 7 inch, 16: 9 LCD TFT display
|
|
Output impedance
|
30 Ω, 100 Ω, 10 /100, 10 /CC
|
|
Test level
|
10 mV－5V (GF1000 : 10 mV－5V ), Accuracy：10%
Constant level：10 mV－1 V Accuracy：5%
|
|
DC bias source
|
-5V~+5V;-100mA~+100mA
(GF1000:0V，1.5V，2V，)Accuracy：1%
|
|
Display range
|
|
|Z|, R, X
|
0.01mΩ — 99.9999 MΩ
|
|
DCR
|
0.001 mΩ — 99.9999 MΩ
|
|
|Y|, G, B
|
0.00001µS — 99.9999S
|
|
C
|
0.00001pF — 9.9999F
|
|
L
|
0.00001µH — 9999.99H
|
|
D
|
0.00001 — 9.9999
|
|
Q
|
0.00001 — 9999.9
|
|
θ (DEG)
|
-179.999º — 179.999º
|
|
θ (RAD)
|
-3.14159 — 3.14159
|
|
Others
|
|
size
|
375mm(W）*135mm（H）*350mm(L）
|
|
suttle
|
About 7.2 kg
|
|
Standard accessories
|
Optional Accessories
|
|
GF26011B
|
Four terminal Kelvin test cable
|
GF26009B
|
SMD test fixture
|
|
GF26005B
|
Four terminal test case
|
GF26008A
|
SMD test case
|
|
GF26010
|
Gold plated copper
|
|
power line
